“WBSA APPROVED” series MODULAR TYPE “AMERICA” WEIGHBRIDGES

Ask a question about this product
“WBSA APPROVED” series MODULAR TYPE “AMERICA” WEIGHBRIDGES

Modular new generation weighbridges, for installation flush floor to the road surface.
Suitable for industrial, agricultural, and commercial fields.

Load cell type (Compression & Shear Beam) & Loading Surface (Checkered)

Main Features:

  • Bearing structure formed by reinforced steel beams.
  • Sturdy load surface in very thick anti slip sheet steel, which guarantees extreme rigidity with every type of vehicles.
  • Anticorrosive treatments and high-resistance painting.

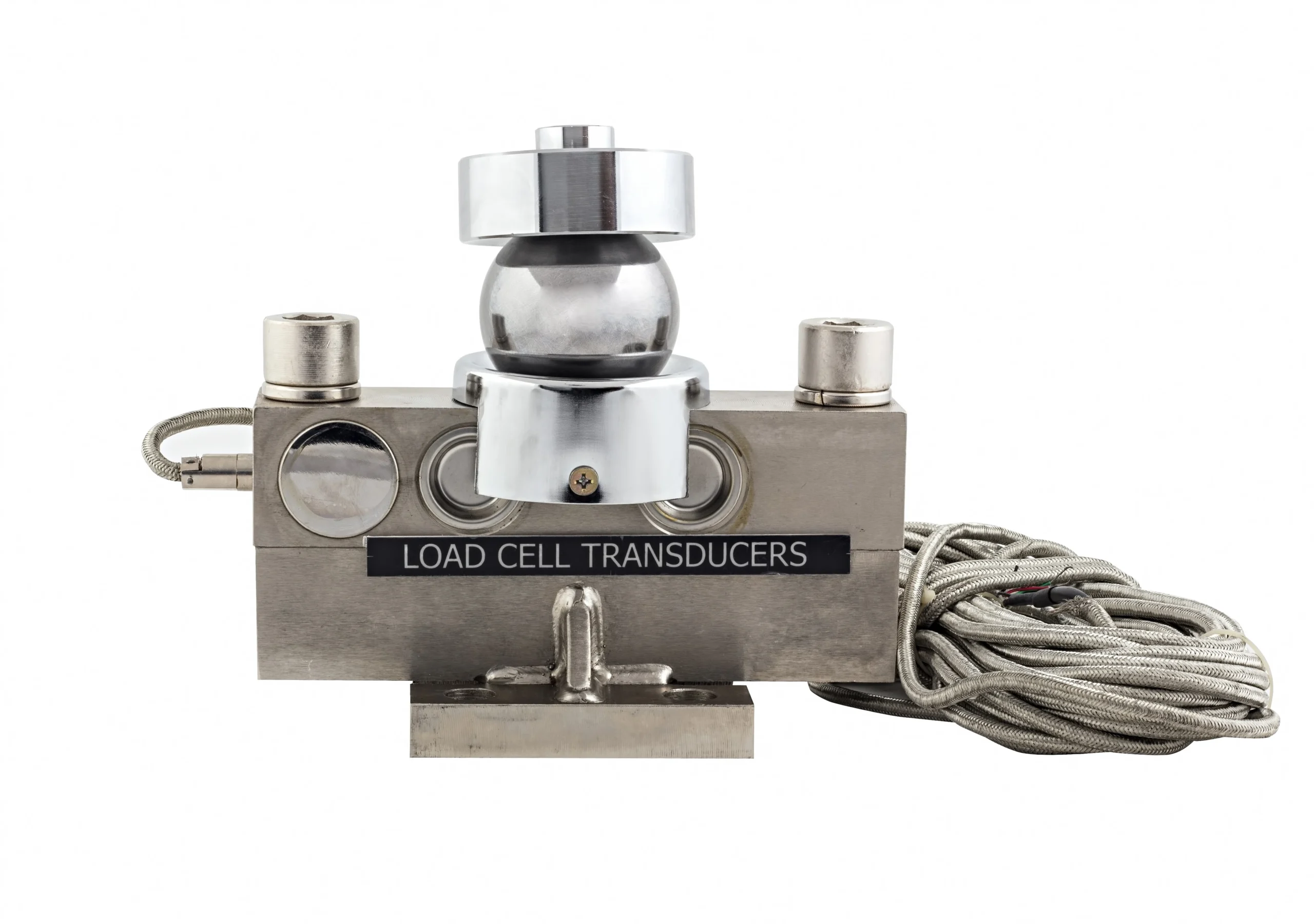

  • Double shear-beam IP68 load cells, C3 precision class, EN45501 approved, complete of spherical self-centering oscillating joints, for compensating the thermal expansions, guaranteeing safe weighs and long term accuracy.
  • Inspected trapdoors for cells maintenance.
  • Reduced height
  • IP68 junction box, complete of 30m connection cable to the indicator.
  • Installation kit
  • Wide range of available weight indicators and accessories.

Services

  • Supply, Transport, installation, commissioning, calibration & operator Training
  • Re-location & Re-installation
  • Annual Maintenance Contract

Weighbridge Structure & Type

Available versions
Code l x w(m) Nr. of cells Max(kg) 2R (kg)
WBSA6-1 6,00×3,00 4 30000 10/20
WBSA9-1 9,00×3,00 6 30000/50000 10/20
WBSA12-1 12,00 x 3,00 6 60000 10/20
WBSA16-1 16,00 X 3,00 8 80000/100000 10/20
WBSA18-1 18,00×3,00 8/10 120000 10/20
WBSA21-1 21,00 X 3,00 10 120000 10/20

*Customized sizes/capacities can be manufactured as per client’s application

Main Connectable Indicators:
Code Description
TSCR203 Weitruck software, for weighbridge management.
3590EPXP Indicator with AF01 software and attached printer. ABS IP65 case, 25-key keypad, LED display and backlit graphic LCD display.

NOTE: To know the range of available printers and accessories, refer to the product data sheets of the weight indicators.

Weight repeaters & Printers
  Code Description
DGT100R (S2)Weight repeater with 100mm LED display. IP68 stainless steel case, 5-key keypad, air valve for regulating the humidity and the pressure.
TMU295 (S2)Dot matrix impact printer.
LQ350 (S2)Dot matrix impact printer.
pitlesstype_1_smpittype_1_sm
PITLESS TYPE WEIGHBRIDGEPIT TYPE WEIGHBRIDGE
Applications:
